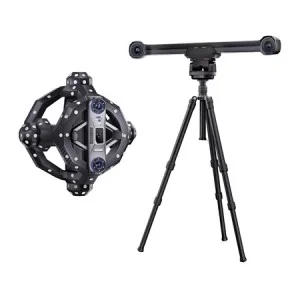

3D optical scanner Revopoint Trackit

The Revopoint Trackit is an advanced professional 3D scanning system designed for industrial applications, reverse engineering, quality control, and CAD design. It combines a high-precision optical scanner with an intelligent real-time spatial tracking system, allowing for the accurate metrological capture of small and large objects up to 0.02 mm without the need for markers in many work scenarios.

Professional metrological precision

The Revopoint Trackit offers a scanning precision of up to 0.02 mm and a point-to-point distance of up to 0.05 mm after merging the point cloud. Thanks to its 30 blue laser lines and an additional high-precision laser line, the system captures complex surfaces and extremely fine details.

The scanned models can be exported in professional formats such as PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX for easy integration into CAD, CAM, and 3D design workflows.

Quick and smooth scanning

The system reaches speeds of up to 1.500.000 Points per second, allowing for complex objects to be digitized in less time and with maximum stability.

Intelligent real-time tracking continuously records the position and orientation of the scanner, ensuring precise alignment even during dynamic movements without the need to maintain fixed positions.

Advanced automatic calibration

The system integrates double-axis cardans with automatic calibration for both the tracker and the scanner. The software automatically synchronizes the parameters and geometry of the measurement system, simplifying the initial setup and reducing calibration errors.

Portable and resistant design

The scanner and tracking system are made with a carbon fiber structure and a polycarbonate casing, offering high strength and low weight.

Thanks to its wheeled suitcases and included tripods, the Revopoint Trackit can be easily used in metrology laboratories as well as in workshops, factories, and industrial environments.

Versatile scanning modes

The system has several operating modes adapted to different scenarios:

• Track Scan: Real-time scanning without markers.
• Multi-Position Scan: Ideal for large objects divided into sections.
• Marcador de escaneo: Use markers for complex or difficult surfaces.

These modes allow working with objects ranging from 10 mm to 6 meters in size.

Professional software Revo Trackit

The Revo Trackit software allows for complete control of the scanning process, including:

• Real-time visualization
• Automatic exposure control
• Automatic point cloud fusion
• Generation of 3D meshes
• Pause and resume scanning
• Export to multiple professional formats

Professional applications

Revopoint Trackit is designed for:

• Industrial quality control
• Metrology and geometric analysis
• Reverse engineering
• CAD design and prototyping
• Research and technical training
• Digitization of automotive parts and machinery

Recommended system requirements

For best performance, it is recommended to use:

• Windows 10/11 64-bit
• Intel Core i9 12th generation processor or higher
• 64 GB of RAM
• Graphics card NVIDIA RTX 4060 8 GB or higher
• USB 3.0 port or higher

Package contents

• Tracker
• Scanner
• Automatic calibration cardan for tracker
• Automatic calibration cardan for scanner
• Tripod for tracker
• Scanner tripod
• Tripod for calibration plate
• Scanner adapter
• Calibration plate
• Calibration post
• Power supply
• Connection cables
• Magnetic bookmarks
• Magnetic anchoring block
• Positioning mat
• USB flash drive
• Rolling briefcases
• Documentation and warranty

Technical specifications
