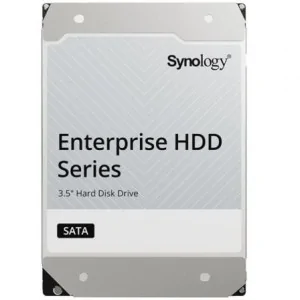

Synology Enterprise HAT5300 12TB 3.5" SATA III 256MB Hard Drive

3.5-inch Enterprise SATA HDD Series

Reliable and high-performance hard drives for Synology systems

Enterprise Storage Drives for Synology Systems

Synology's HAT5300 HDD drive offers class-leading performance thanks to its close integration with DSM and Synology hardware. With over 500,000 hours of internal validation testing and backed by Synology's 5-year limited warranty, the HAT5300 series delivers unparalleled reliability in Synology deployments.

Consistent Performance Scaling

Through testing and optimizations, the HAT5300 series HDD has been fine-tuned to deliver up to 23% higher sustained sequential read performance in demanding multi-user environments.

Rigorous Validation

Over 500,000 hours of testing with Synology devices ensure that the HAT5300 drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.

One-Click Firmware Updates

Automatic firmware update notifications and one-click installation via DSM minimize maintenance workload and reduce the likelihood of oversights.

Durability for Continuous Use Environments

With an MTBF rating of up to 2.5 million hours, the HAT5300 series HDD supports a workload of 550 TB per year and features persistent write cache technology to minimize data corruption in case of sudden power loss.

Synology Enterprise HAT5300 12TB Hard Drive Specifications

General

• Capacity 12 TB
• Form Factor 3.5"
• Interface SATA 6 Gb/s

Performance

• Rotation Speed 7,200 rpm
• Max. Sustainable Data Transfer Rate (typical) 254 MB/s

Power Consumption

• Power Supply Voltage 12 V (± 10%) / 5 V (+10/-7%)
• Idle (typical) 4.25 W
• Random Read/Write (4KB Q1) (typical) 7.83 W

Temperature

• Operating 5°C to 60°C (41°F to 140°F)
• Non-operating -40°C to 70°C (-40°F to 158°F)

Others

• Size (Height x Width x Depth) 26.1 mm x 101.85 mm x 147 mm
• Weight 720 g
• Certification
• CE, RCM, BSMI, KC, EAC, UL, TUV, ICES, UKCA, RoHS, Morocco Mark
