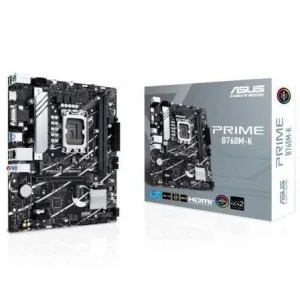

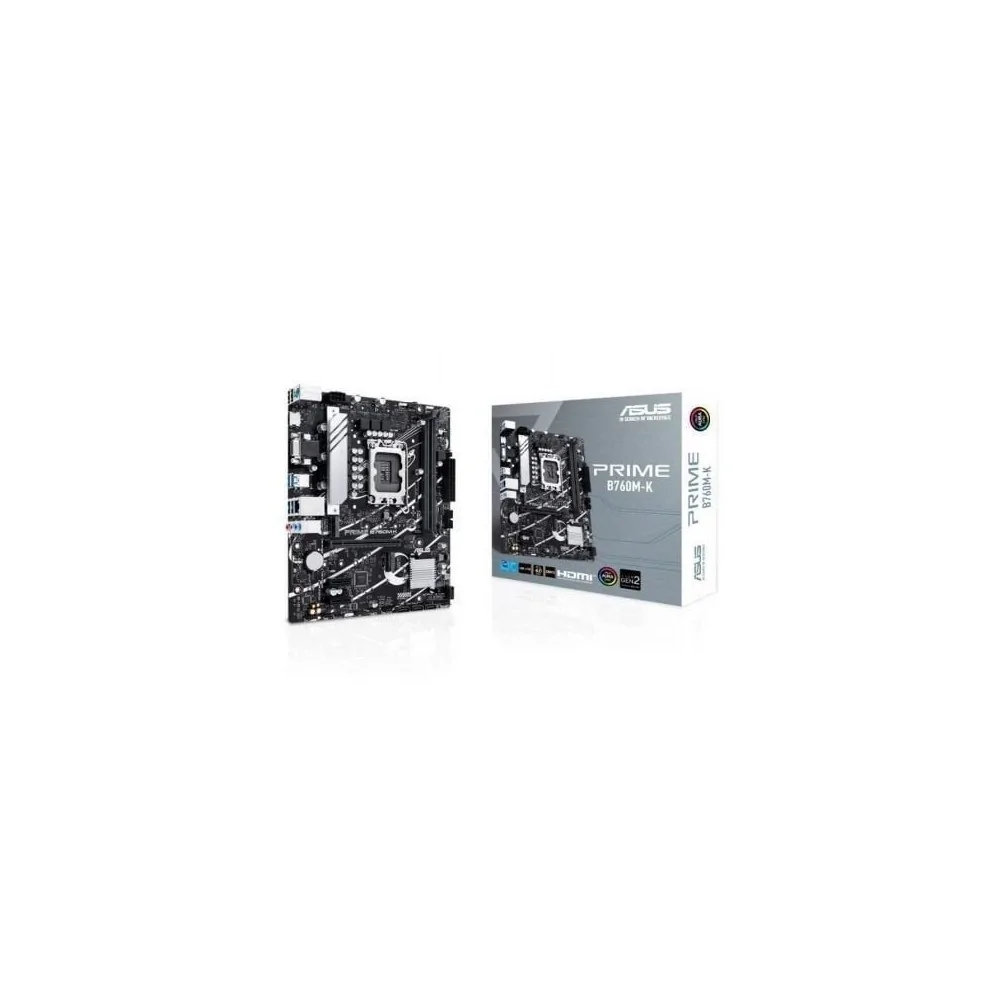

Asus PRIME B760M-K Socket 1700/ micro atx

Specifications Asus PRIME B760M-K Socket 1700

- CPU

- Intel® Socket LGA1700 for 13th Gen Intel® CoreTM & 12th Gen Intel® CoreTM, Pentium® Gold and Celeron® Processors*

- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

- Refer to www.asus.com for CPU support list.

- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

- Chipset

- Intel® B760 Chipset

- Memory

- 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5200/5000/4800 Non-ECC, Un-buffered Memory*

- Dual Channel Memory Architecture

- Supports Intel® Extreme Memory Profile (XMP)

- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

- Figures

- 1 x VGA port

- 1 x HDMITM port**

- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

- ** Supports 4K@60Hz as specified in HDMITM 2.1.

- Expansion Slots

- Intel® 13th & 12th Gen Processors

- 1 x PCIe 4.0 x16 slot

- Intel® B760 Chipset

- 2 x PCIe 4.0 x1 slots

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

- Storage

- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

- Intel® 13th & 12th Gen Processors

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

- Intel® B760 Chipset

- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

- 4 x SATA 6Gb/s ports

- * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

- Ethernet

- 1 x Realtek 2.5Gb Ethernet

- USB

- Rear USB (Total 6 ports)

- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

- 2 x USB 2.0 ports (2 x Type-A)

- Front USB (Total 5 ports)

- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

- 2 x USB 2.0 headers support 3 additional USB 2.0 ports

- Audio

- Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

- Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

- Ports I/O rear panel

- 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)

- 2 x USB 2.0 ports (2 x Type-A)

- 1 x VGA port

- 1 x HDMITM port

- 1 x Realtek 2.5Gb Ethernet port

- 3 x Audio jacks

- 1 x PS/2 Keyboard/Mouse combo port

- I/O ports

- Fan and Cooling related

    - 1 x 4-CPU Fan header

    - 2 x 4-pin Chassis Fan headers

- Power related

    - 1 x 24-pin Main Power connector

    - 1 x 8-pin +12V Power connector

- Storage related

- 2 x M.2 slots (Key M)

- 4 x SATA 6Gb/s ports

- USB

- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

- 2 x USB 2.0 headers support 3 additional USB 2.0 ports

- Miscellaneous

- 2 x Addressable Gen 2 headers

- 1 x Aura RGB header

- 1 x Clear CMOS header

- 1 x COM Port header

- 1 x Front Panel Audio header (AAFP)

- 1 x S/PDIF Out header

- 1 x Speaker header

- 1 x SPI TPM header (14-1pin)

    - 1 x 10-1 pin System Panel header

- BIOS

- 128 Mb Flash ROM, UEFI AMI BIOS

- Managed

- WOL by PME, PXE

- Accessories

- Cables

- 2 x SATA 6Gb/s cables

- Miscellaneous

- 1 x I/O Shield

- 2 x M.2 anchors

- Documentation

- 1 x User guide

- Operating system

- Windows® 11, Windows® 10 64-bit

- Form factor

- mATX (24.4cm x 21.1cm)
