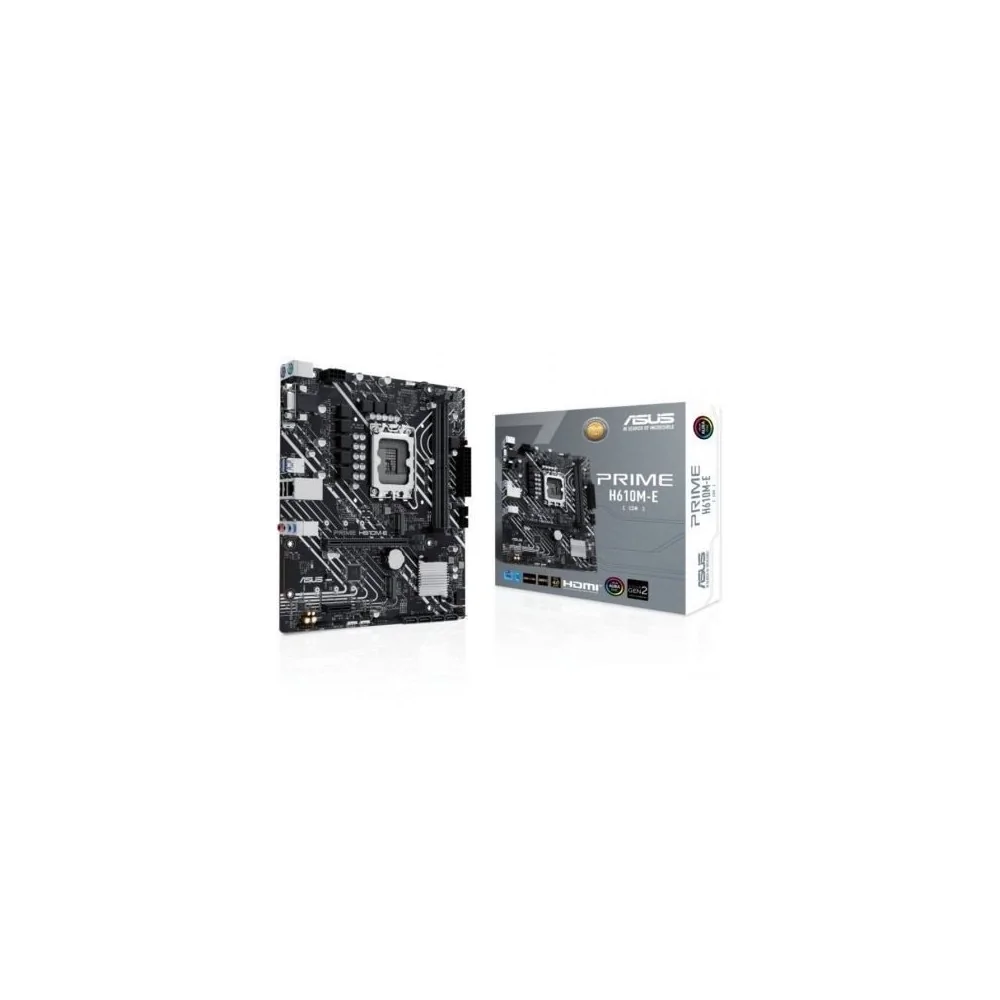

Asus Prime H610M-E-CSM/ socket 1700/ micro atx

Specifications Asus Prime H610M-E-CSM

- Processor

- Processor Manufacturer: Intel

- Processor Zócalo: LGA 1700

- Supported Processors: Intel® Celeron®, Intel® CoreTM i3, Intel® CoreTM i5, Intel® CoreTM i7, Intel® CoreTM i9, Intel® Pentium® Gold

- Compatible processor Slots: LGA 1700

- Storage

- Memory supported: DDR5-SDRAM

- Number of memory slots: 2

- Maximum RAM: 96 GB

- Type of RAM: DIMM

- Memory channels: double channel

- Without ECC: Yes

- admitted memory rate: 4800.5000.5200.5400.5600 MHz

- admitted memory clock speed (max.): 5600 MHz

- Memory without buffer: Yes

- Weight and dimensions

- Width: 244 mm

- Depth: 211 mm

- Red

- Wi-Fi: Yes

- Built-in Ethernet port: Yes

- Ethernet interface type: Gigabit Ethernet

- Internal E/S ports

- Number of USB 2.0 interfaces: 2

- USB ports 3.2 Gen 1 (3.1 Gen 1): 1

- SATAIII ports: 4

- S/PDIF output connector: Yes

- Front panel audio connector: Yes

- ATX feed connector (24 pins): Yes

- CPU fan connector: Yes

- Number of chassis fan connectors: 2

- EPS power connector (8 pins): Yes

- Number of connectors COM: 1

- TPM Connector: Yes

- 12 V power supply: Yes

- RGB LED head: Yes

- E/S rear ports

- Number of USB 2.0 ports: 2

- USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 2

- Number of Ethernet LAN ports (RJ-45): 1

- Number of VGA ports (D-Sub): 1

- Number of HDMI ports: 1

- Number of PS/2 connections: 2

- HDMI version: 2.1

- Number of DisplayPort connections: 1

- DisplayPorts version: 1.4

- Departures of headphones: 1

- Line entry: Yes

- Microphone input: Yes

- Storage Controller

- Supported storage unit interfaces: M.2, SATA III

- Supported storage units: HDD and SSD

- Maximum number of HDD admitted: 4

- Number of supported storage units: 6

- Cables included: SATA

- User manual: Yes

- Expansion Slots

- PCI Express x1 connectors (Gen 3.x): 1

- PCI Express x16 Slots (Gen 4.x): 1

- Number of slots M.2 (M): 2

- BIOS

- Type of BIOS: UEFI AMI

- BIOS memory size: 128 Mbit

- Figure

- Parallel processing technology: not compatible

- Features

- Component for: PC

- Form factor of the base plate: micro ATX

- Base plate chipset family: Intel

- Roof chipset: Intel H610

- Audio channels: 7.1 channels

- Cooling: Passive

- Power source: ATX

- Supports Windows operating systems: Windows 10, Windows 11
