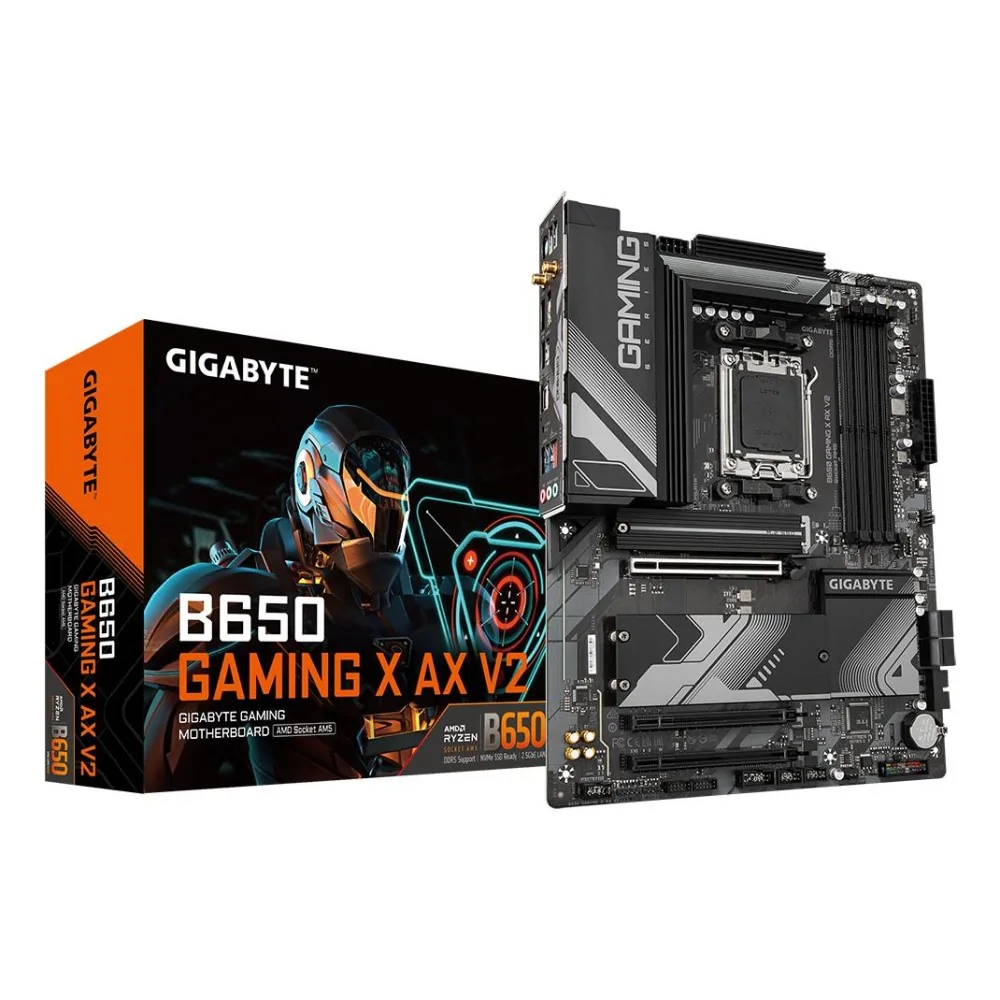

Gigabyte AMD B650 Motherboard Socket AM5 ATX RAM DDR5

Specifications Gigabyte Motherboard AMD It seems like "B650" is a code or reference that doesn't have a specific meaning on its own. If you provide more context or information, I can help you understand its significance or translate it accordingly.

Characteristics

• Audio chip: Realtek ALC897
• Audio output channels: 7.1 channels
• Component for: personal computer
• Chipset of the motherboard: AMD It seems like "B650" is a code or reference that doesn't have a specific meaning on its own. If you provide more context or information, I can help you understand its significance or translate it accordingly.
• Chipset family of motherboard: AMD
• Motherboard form factor: ATX
• PC monitoring: Fan/Temperature/Voltage/Water cooling
• Type of power supply: ATX
• Product color: Brown
• Compatible Windows operating systems: Windows 10 x64/Windows 11 x64

Processor

• Compatible processor series: AMD Ryzen 7000 Series.AMD Ryzen Series 8000/AMD Ryzen 9000 Series
• Processor manufacturer: AMD
• Processor socket: AM5 socket
• Compatible processor sockets: AM5 socket

Memory

• ECC Compatibility: Non-ECC
• Maximum internal memory: 256 GB
• Maximum internal memory per slot: 64 GB
• Memory channels: Dual channel
• Memory slot type: DIMM
• Number of memory slots: 4
• Supported memory clock speed (max.): 8000 MHz
• Compatible memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
• Compatible memory types: DDR5-SDRAM
• Buffer Memory: Yes

Storage drivers

• Number of compatible hard drives: 4
• Number of compatible storage units: 7
• RAID levels: 0/1/10
• RAID compatibility: Yes
• Compatible storage unit interfaces: M.2, SATA III
• Types of compatible storage units: HDD and SSD

Graphics

• DirectX version: 12.0
• Discrete graphics compatibility: Yes
• HDCP: Yes
• Maximum resolution: 4096 x 2160 pixels
• Compatibility with parallel processing technology: Not compatible

I/O internal

• 12 V power connector: Yes
• ATX power connector (24 pins): Yes
• CPU fan connector: Yes
• EPS power connector (8 pins): Yes
• Front panel audio connector: Yes
• Front panel connector: Yes
• Number of chassis fan connectors: 3
• Number of CPU fan connectors: 2
• Number of EPS power connectors (8 pins): 1
• Number of pin connectors for RGB LED: 5
• Number of SATA III connectors: 4
• Number of water pump connectors: 2
• Pin connector for RGB LED: Yes
• Serial port headers: 1
• TPM Connector: Yes
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• USB 3.2 Gen 2x2 connectors: 1

I/O ports on the back panel

• DisplayPort version: 1.4
• Number of DisplayPorts: 1
• Ethernet LAN ports (RJ-45): 1
• Number of HDMI ports: 1
• HDMI version: 2.1
• Headphone outputs: 1
• Line input: Yes
• Microphone on: Yes
• Number of USB 2.0 ports: 3
• Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
• Number of USB 3.2 Gen 2 (3.1 Gen 2) Type A ports: 1
• Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
• WiFi-AP antenna connector: 2

Network

• Bluetooth: Yes
• Bluetooth Version: 5.3
• Ethernet Interface Type: 2.5 Gigabit Ethernet
• LAN Ethernet: Yes
• LAN Controller: Realtek RTL8125
• Top-tier Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi: Yes
• Wi-Fi Standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
• WLAN Controller Model: Realtek RTL8852CE

Expansion slots

• First generation of high-power PCI Express M.2: 5.0
• 1st M.2 larger key size: 25110
• Second generation of PCI Express M.2 with higher capacity: 4.0
• Second largest M.2 key size: 25110
• 3rd generation of higher capacity PCI Express M.2: 4.0
• Third largest M.2 key size: 25110
• Number of M.2 slots (M): 3
• PCI Express x16 slots (Gen 3.x): 2
• PCI Express x16 Slots (Gen 4.x): 1

BIOS stands for Basic Input/Output System. It is a type of software that is built into a computer's motherboard and is responsible for managing the computer's hardware components and booting up the operating system.

• ACPI Version: 5.0
• BIOS memory size: 256 Mbit
• BIOS type: UEFI AMI
• CMOS reset button: Yes
• Delete CMOS bridge: Yes
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
