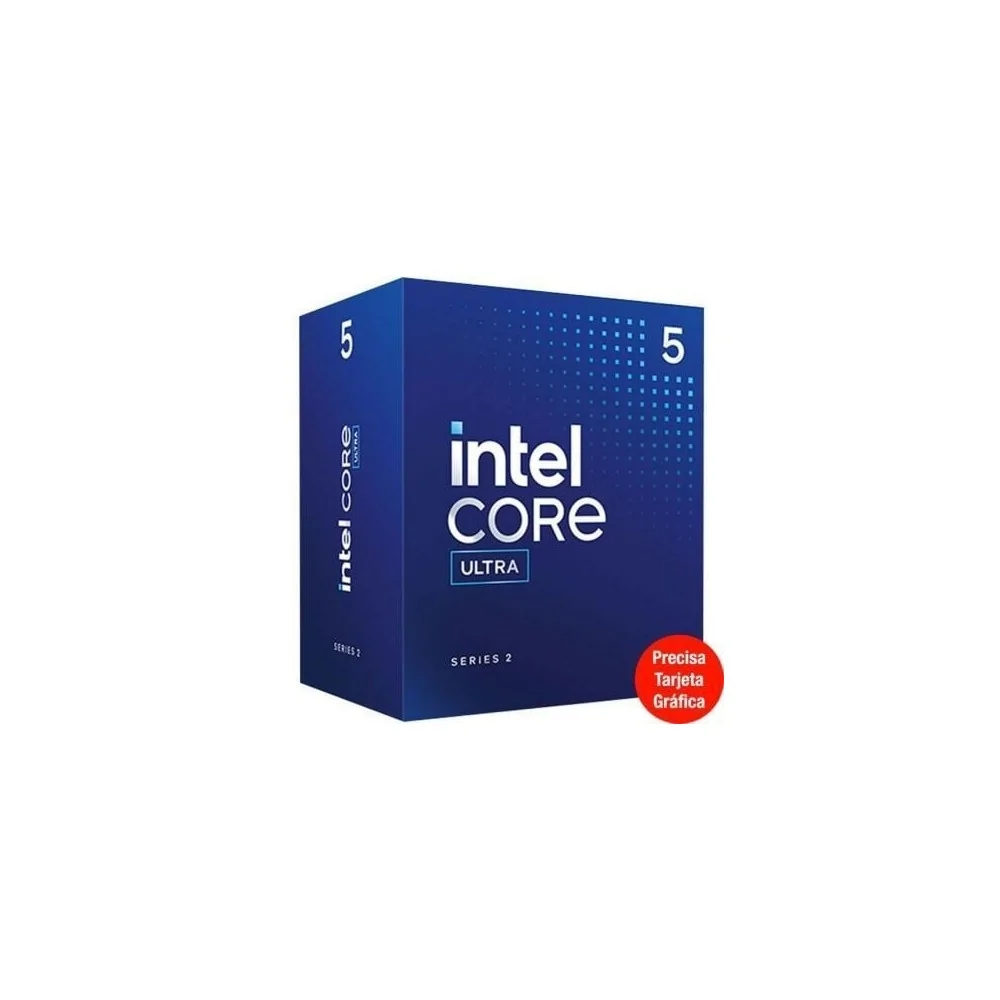

Intel Core Ultra 5-225F 3.3 GHz Processor Socket 1851

Key Features

• Intel Core Ultra Processors Collection (Series 2)
• Formerly Codenamed Products Arrow Lake
• Vertical Segment Desktop
• Processor Number 225F
• Overall Maximum TOPS (Int8) 19

CPU Specifications

• Number of Cores 10
• Number of Performance-cores 6
• Number of Efficient-cores 4
• Total Threads 10
• Max Turbo Frequency 4.9 GHz
• Max Performance-core Turbo Frequency 4.9 GHz
• Max Efficient-core Turbo Frequency 4.4 GHz
• Performance-core Base Frequency 3.3 GHz
• Efficient-core Base Frequency 2.7 GHz
• 20 MB Intel Smart Cache
• Total L2 Cache 22 MB
• Processor Base Power 65 W
• Max Turbo Power 121 W
• Intel® Deep Learning Boost (Intel® DL Boost) Yes
• AI Software Frameworks Supported by CPUOpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography TSMC N3B

Additional Information

• Integrated Options Available No

Memory Specifications

• Max Memory Size (dependent on memory type) 192 GB
• Memory Types Up to DDR5 6400 MT/s
• Max Memory Channels 2

NPU Specifications

• NPU Name‡Intel AI Boost
• Max NPU TOPS (Int8) 13
• Sparsity Support Yes
• Windows Studio Effects Support Yes
• AI Software Frameworks Supported by NPUOpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

• Direct Media Interface Revision (DMI) 4
• Max DMI Lanes 8
• Intel® Thunderbolt 4 Yes
• Scalability 1S Only
• PCI Express Revision 5.0 and 4.0
• PCI Express Configurations ‡ Up to 1x16+2x4, 2x8+2x4,
• 1x8+4x4
• Max PCI Express Lanes 24

Package Specifications

• Compatible Sockets FC LGA 1851
• Thermal Solution Specification PCG 2022C
• Max Operating Temperature 105 °C

Advanced Technologies

• Intel Volume Management Device (VMD) Yes
• Intel Gaussian and Neural Accelerator 3.5
• Intel Thread Director Yes
• Intel® Speed Shift Technology Yes
• Intel® Turbo Boost Technology ‡ 2.0
• Intel® 64 ‡ Yes
• 64-bit Instruction Set
• Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States Yes
• Enhanced Intel SpeedStep Technology Yes
• Thermal Monitoring Technologies Yes

Security and Reliability

• Intel Standard Management ‡ Yes
• Intel® Control-Flow Enforcement Technology Yes
• New Instructions for Intel AES Yes
• Secure Key Yes
• Intel® Trusted Execution Technology ‡ Yes
• Execute Disable Bit ‡ Yes
• Intel® OS Guard Yes
• Intel® Boot Guard Yes
• Mode-based Execute Control (MBEC) Yes
• Intel® Virtualization Technology (VT-x) ‡ Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
• Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
